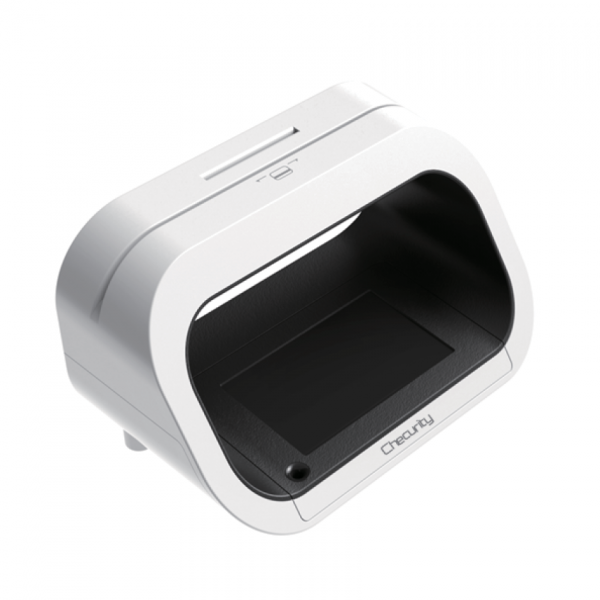

Hybrid Card Terminal with Magnetic & IC Card & Touch PAD
Checurity Series is equipped with a IC/MSR and hardware Touch PAD with all the convenient
features of the Checurity Series has achieved the convenience of customers.
Reliability, usability, and durability with innovative design Checurity series we will give you the
experience of a new card payment
Features
• Smart IC card Support(ISO 7816 & EMV Level 1&2)
• Compact size & Adopt a low-power CPU
• RS232C or USB support
• Data Encryption Support(AES selectable)
• Electronic signatures and Pin PAD input function
• Samsung-Pay support
Application
• POS System
• CAT (Card author ization Terminal) Unit
• Banking system
• ID Verification
• Time and attendance terminals
Specification
Standard Specification |
ISO 7816, EMV Level-1 & 2 Compliant |
Card Dimension |
ID-1 Card( ISO 7810) |
Head life cycle | 500,000 cycle |
IC Contact life cycle | 100,000 cycle |
Magnetic Read speed | 20 ~ 100 cm / sec |
Power | DC 5V±5%, 100mA±10% |
Operating Temperature | -5℃ ~ 50℃ |
Storage Temperature | -40℃ ~ 70℃, 10% ~ 95%HR |
Dimension | 64.0mm(W) x 31.1mm(L) x 21.00(H) |
Display | 4.3 TFT Color LCD |
Weight | - |
